Fusion Server 2288H V7
Classification:
• FusionServer 2288H V7 (2288H V7) is a new-generation 2U 2-socket rack server designed for SDS, VDI, CDN, virtualization, big data, database, cloud scenarios, AI inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads. • The 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
Contact:
Features
Fusion Server 2288H V7
The Fusion Server 2288H V7 builds on the strengths of its predecessor and offers even more options for companies looking to optimize their IT infrastructure. With space for up to 24 DIMM memory slots, the server supports a high memory capacity of up to 3 TB of DDR4 RAM, which significantly speeds up the processing of large amounts of data. In addition, support for NVMe SSDs enables lightning-fast data transfer and reduces latency, which is particularly beneficial for real-time applications.
Another outstanding feature of the Fusion Server 2288H V7 is its integrated management software, which enables easy monitoring and management of server resources. Administrators can monitor system status in real time, receive alerts and efficiently schedule maintenance tasks, reducing operating costs and minimizing downtime.
Processor architecture |  |
Specifications
| Form Factor | 2U rack server |

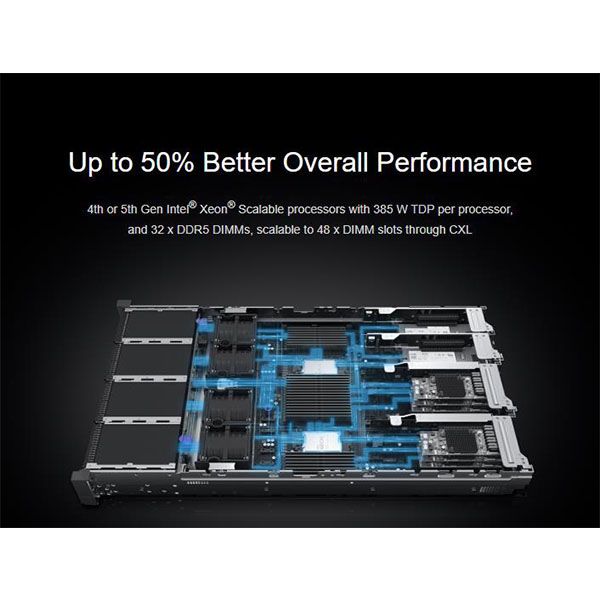

| Processor | 1 or 2 x 4th or 5th Gen Intel® Xeon® Scalable processors with TDP up to 385 W per processor |
| Chipset | Emmitsburg PCH |
| Memory | 32 x 5600 MT/s DDR5 DIMMs and 16 x DDR5 or DDR4 DIMMs supported by the CXL technology; up to 48 x DIMMs* |
| LocalStorage | Hot-swappable drives with the following configuration options are supported: • 8 to 35 x 2.5ʺ SAS/SATA/SSD drives • 12 to 20 x 3.5ʺ SAS/SATA drives • 4/8/16/24 x NVMe SSDs • 36 x E1.S SSDs* • Up to 45 x 2.5ʺ drives, or 34 x full NVMe SSDs • 2 x M.2 SSDs, hardware RAID, and hot swap |
| RAID | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Network | Expansion capability of multiple types of networks OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported |
| Fan Module | 4 x hot-swappable counter-rotating fans in N+1 redundancy |
| Power Supply | 900 W/1200 W/1500 W/2000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
